● Heavy duty design, High quality and easy to operate hydraulic lift table

● Choice of 1000kg, 2000kg, 4000kg load capacity

● Different table sizes and lifting heights are available as options

● Electric lift table can be installed within a pit

● Applies to AC 380V/50HZ

● Conforms to EN 1570

● Dust cover for option

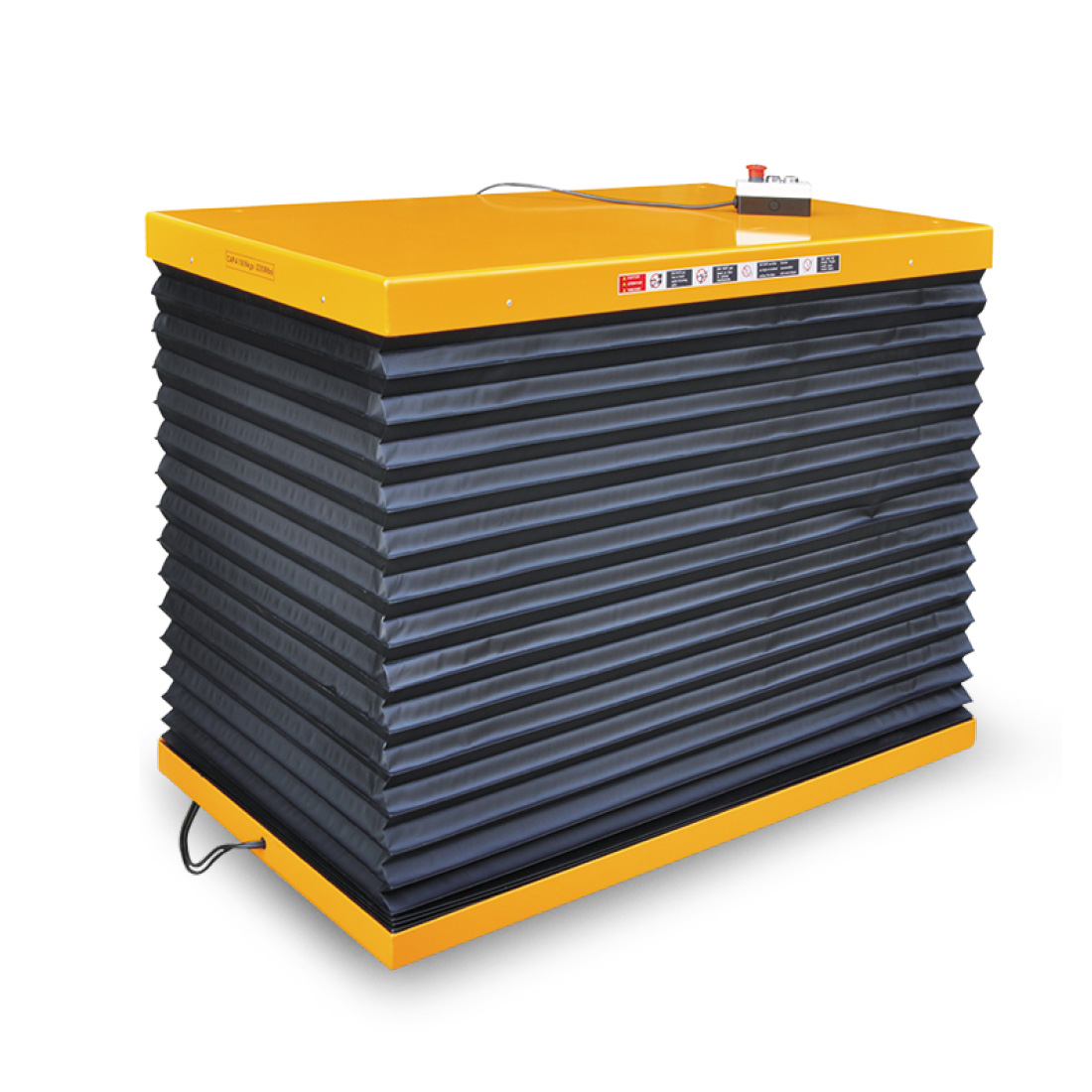

The Electric Hydraulic Scissor Lift Table, renowned for its ability to handle bulky and heavy materials effectively, stands out in industrial applications where maximizing productivity and ensuring worker safety are paramount. Its hydraulic system allows precise positioning of loads, enabling tasks such as feeding or accumulating materials from machines or conveyor lines without the physical strain associated with manual lifting.

This versatile equipment finds extensive use across diverse sectors including automotive manufacturing, container handling, mold manufacturing, wood processing, and chemical canning. Its capacity to lift loads to desired heights not only enhances operational efficiency but also mitigates risks of back injuries and strain caused by repetitive heavy lifting and bending tasks.

Safety features are integral to the design of this lift table, ensuring reliable operation and protecting personnel. A patented safety system on the platform prevents unintended lowering in the presence of obstacles, while heavy-duty cylinders equipped with a drainage system and check valve prevent sudden descents in case of hose bursts. Safety clearances between scissors prevent accidents during operation, and a safety wedge facilitates maintenance accessibility.

The lift table's robust construction supports its heavy-duty capabilities, suitable for demanding industrial environments. It operates on AC 380V/50Hz power, featuring an internal power pack with relief and flow control valves for controlled lowering speeds and protection against overloading. Additionally, a scissors design provides overload protection, and an upper travel limit switch halts operation at maximum height to minimize motor wear and prolong equipment life.
