Fully Electric Pantograph Reach Stacker Specifications WRS15T

这里可以自定义设置
这里可以自定义设置

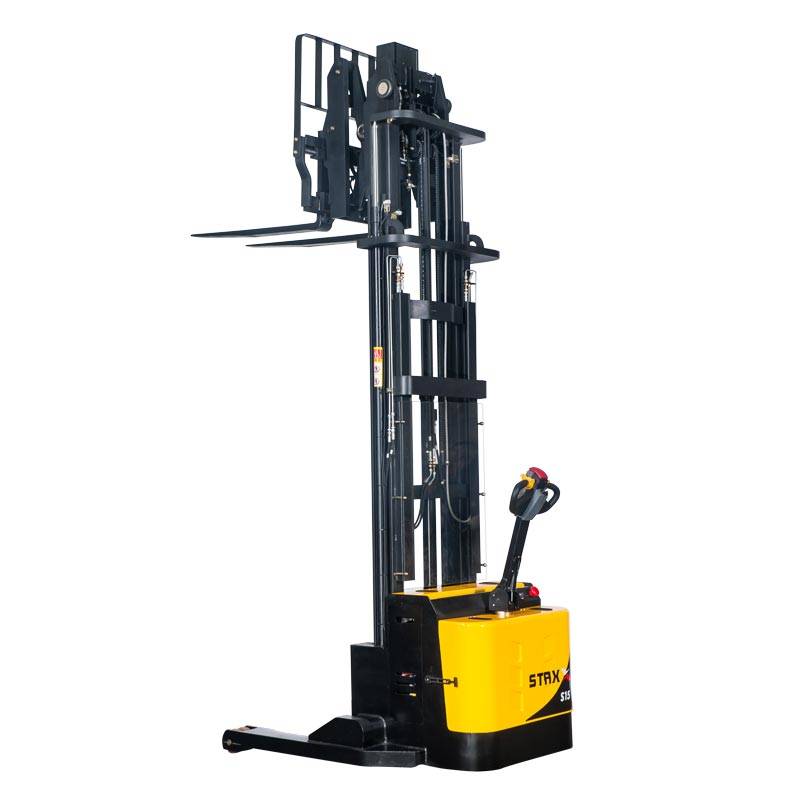

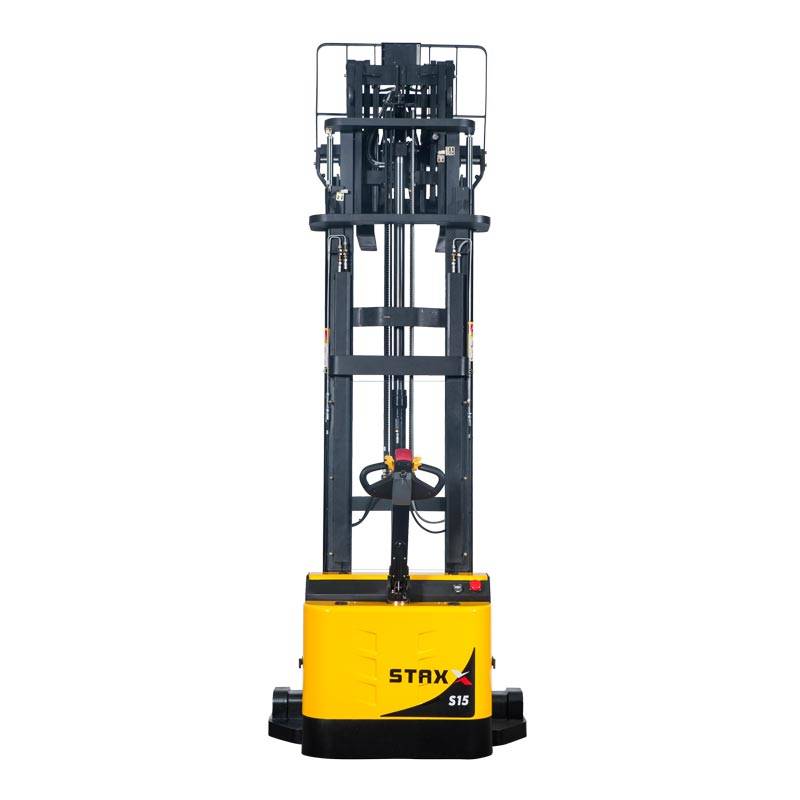

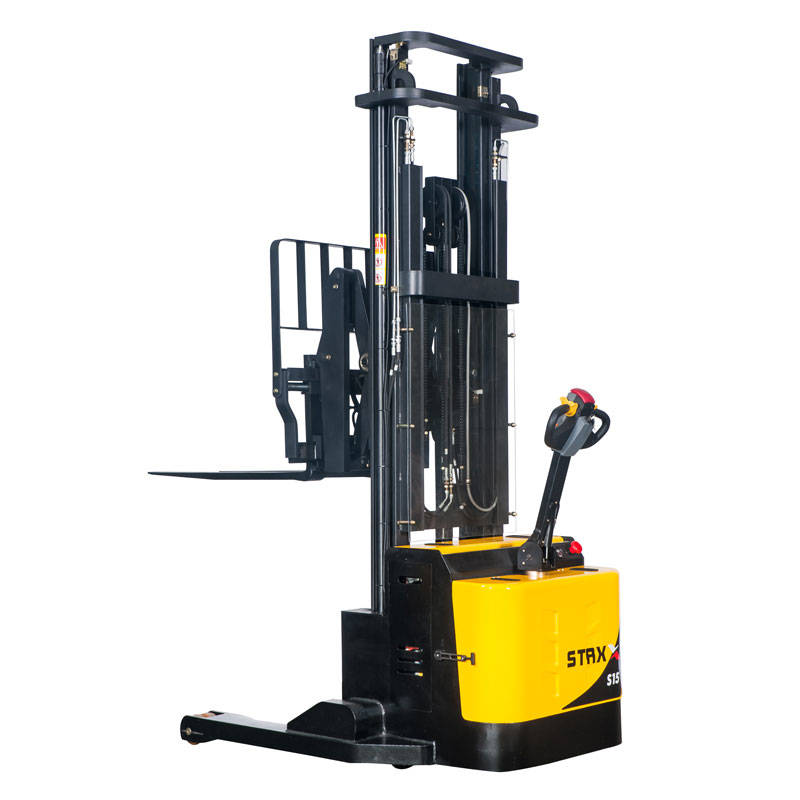

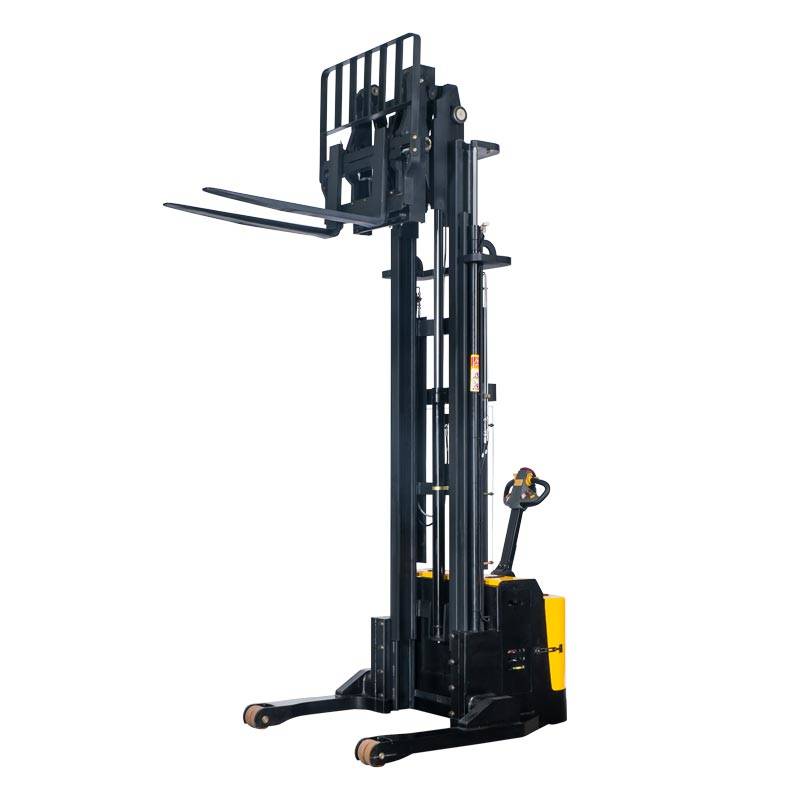

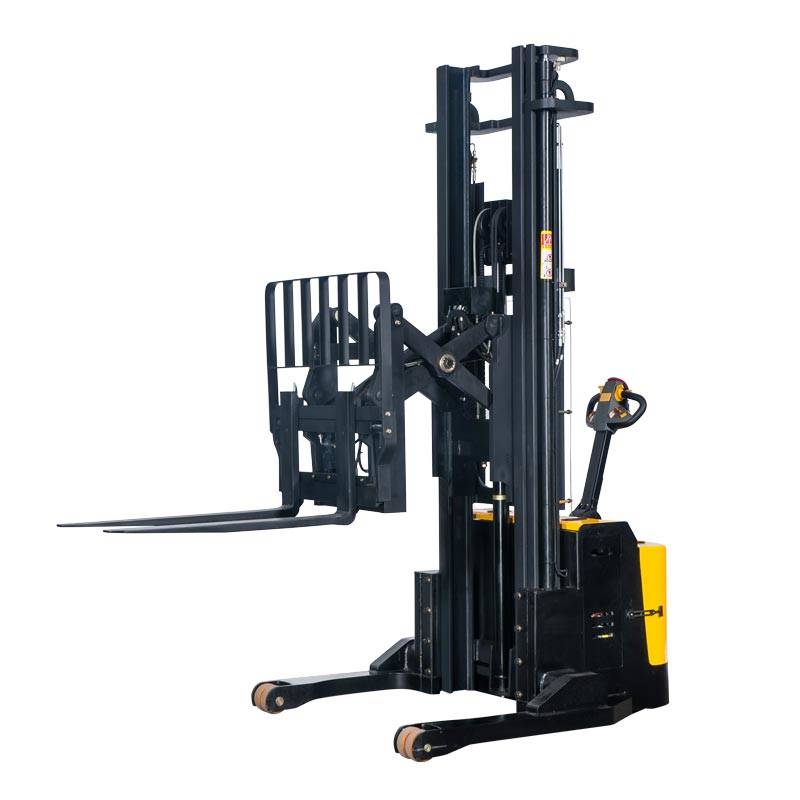

Fully Electric Pantograph Reach Stacker Specifications WRS15T
1500kg,Lifting height:3700-6000mm,Fork size:200-680*1070mm,Reach Distance:585mm,24V 270/340Ah,STD EPS,STD Fork Tilting,STD Side Shift,MoonWalk STD
Heavy Duty Pantograph Reach Stacker
B站不支持收货地址
B站不支持库存规格
Payment
30% advance payment, 70% balance payment paid within 15 days against B/L date
Delivery Time
45 days
Port of loading
Ningbo, China
Certification
CE certificate
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置

ADVANTAGES OF OUR PRODUCT FEATURES

Professioanl pantograph reach truck and fully electric stacker for sale

Adjustable rigid forks, suitable for various pallet size.

Lifting height limitation switch, automatic stop at top height for save energy and protect motor.

Cornering speed control, automatic slow down when in turning

Safety speed control, traveling speed automatic decline to 2km/h when forks over 500mm or free lift finished.

Easy and simple change rear cover design.

Suitable for heavy duty work and double deep pallet handling,

increase efficiency and productivity.


◆ Powerful AC drive motor
◆ Electric power steering
◆ Side pull battery replacement design



Hydr-App(Italy) hydraulic pump system + ZF transmission, reliable quality
Pantograph reach 600mm, reach second pallet for double-deep stack
Fast lift/lowering speed, variable speed control on all functions
Moonwalk STD, one button shift, Warning lights and beeper std incl.

这里可以自定义设置

PARAMETER TABLE

fully electric stacker parameters, materials, voltage, size, etc.

这里可以自定义设置

Capacity /

1500kgs



Lifting height  /

3700-6000mm



Battery capacity /

210Ah/280Ah Lead acid battery



Charging method /

External charger

这里可以自定义设置

PRODUCT DESCRIPTION

Product details and descriptions, let customers know more about our products

specification

Detailed parameters of each model
