What Is A Pallet Truck - A Basic Introduction

What Is A Pallet Truck - A Basic Introduction


The pallet truck is a common warehouse handling machine, also commonly known as pump truck or pallet jack. And the pallet truck with a tapered and pump handle that can use for lifting and lowering as well as transferring the good from one location to another. Pallet trucks are often used in large warehouses, supermarkets, storage rooms and other places that need to move goods. Staxx pallet truck manufacturer will show you a basic introduction about lithium electric pallet trucks and manual pallet truck below.

Manual pallet truck and lithium electric pallet trucks are often utilized for loading and unloading vehicles, while riding electric pallet jacks may be employed for horizontal transit around warehouses.

They are particularly beneficial for increasing the productivity of these manual activities in warehouse settings, allowing a multi-person job to be reduced to a single person operation.

The operational principle of pallet truck:

The pallet truck is controlled by a lever that looks like a 'tiller' and serves as the pump handle for lifting the pallet truck. The hydraulic fluid is released by a bit of lever on the tiller, which causes the forks to drop. The front wheels are mounted on levers linked to linkages attached to levers attached to the jack cylinder at the end of the forks. Lifting the hydraulic pallet truck at one end of the 'tiller' causes the links to drive the wheels down, elevating the forks vertically above the front wheels and lifting the cargo upward until it clears the floor. The pallet is only raised to a height sufficient to clear the floor for further transportation.

Types of pallet truck:

The different types of pallet truck are listed below:

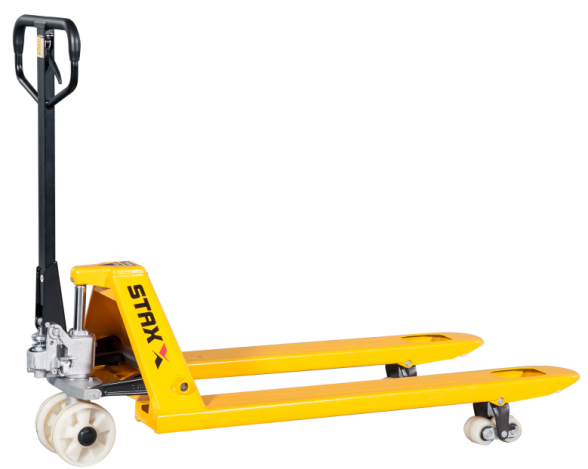

Manual pallet truck

Typically seen in retail and personal warehousing operations, a manual pallet truck is a hand-powered truck that lifts pallets one at a time. They are mainly used for moving pallets from one location to another by lifting, lowering, and directing them.

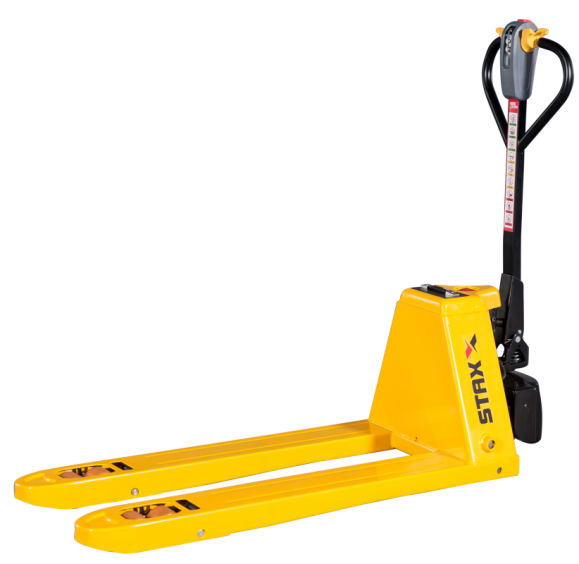

Lithium electric pallet trucks:

The powered pallet truck also known as electric pallet truck, walkies, is a kind of pallet truck that works with the lithium battery in the fuselage.  The mechanized lifting and transportation of more extensive and stacked pallets make it popular. And the throttle typically controls the motorized pallet truck on the handle, which allows it to travel forward or backward. As shown in the illustration, it is directed by swinging the handle in the desired direction.

Pallet Trucks Have Several Applications

With the range of various pallet trucks accessible to you, there are also several varied purposes for these pallet trucks, which include the following:

A manual pallet truck, such as this high duty hand pallet truck, is most typically used to hoist and move cargo weighing up to 2500kg physically. It is the most common form of a pallet truck and is the most widely used pallet truck.

An lithium electric pallet trucks is often employed in the project that requires moving goods up and down since it eliminates the need for human labour in the process of transporting loads of various sizes.

High-raise pallet trucks are often used to hoist loads that are considerably higher than those that can be lifted by a conventional pallet truck while also serving as a lifting table and a workbench at the same time.

It is possible to weigh anything you are moving up to a particular quantity with a weight-scale pallet truck while still maintaining a standard pallet truck's efficiency and ease of use.

Pallet trucks may be used for a range of different tasks, and depending on the task, you may need a certain kind of pallet truck, such as an lithium electric pallet trucks, if you want to reduce the amount of labor required for the task.
