Brushless drive motor, maintenance free
这里可以自定义设置
01.

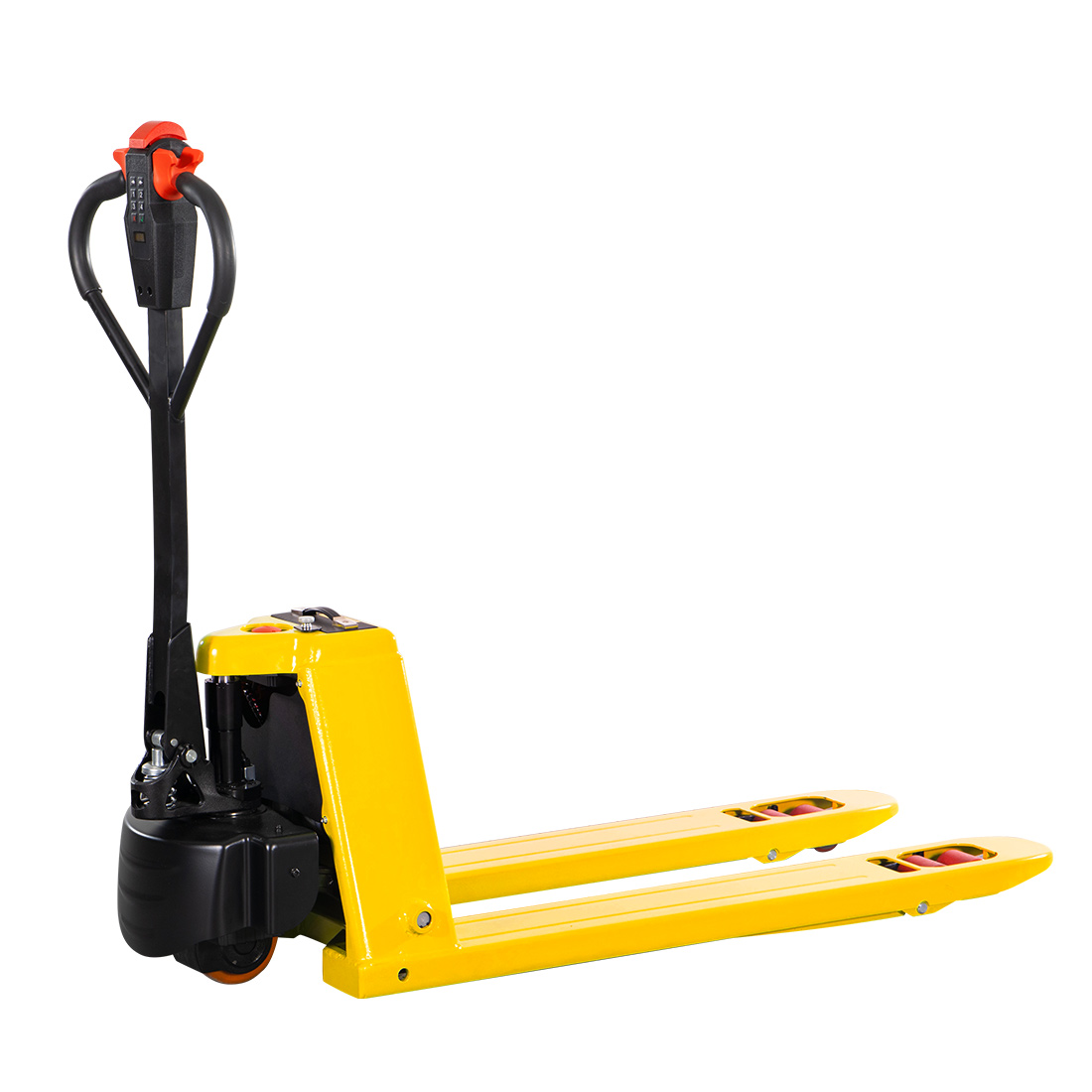

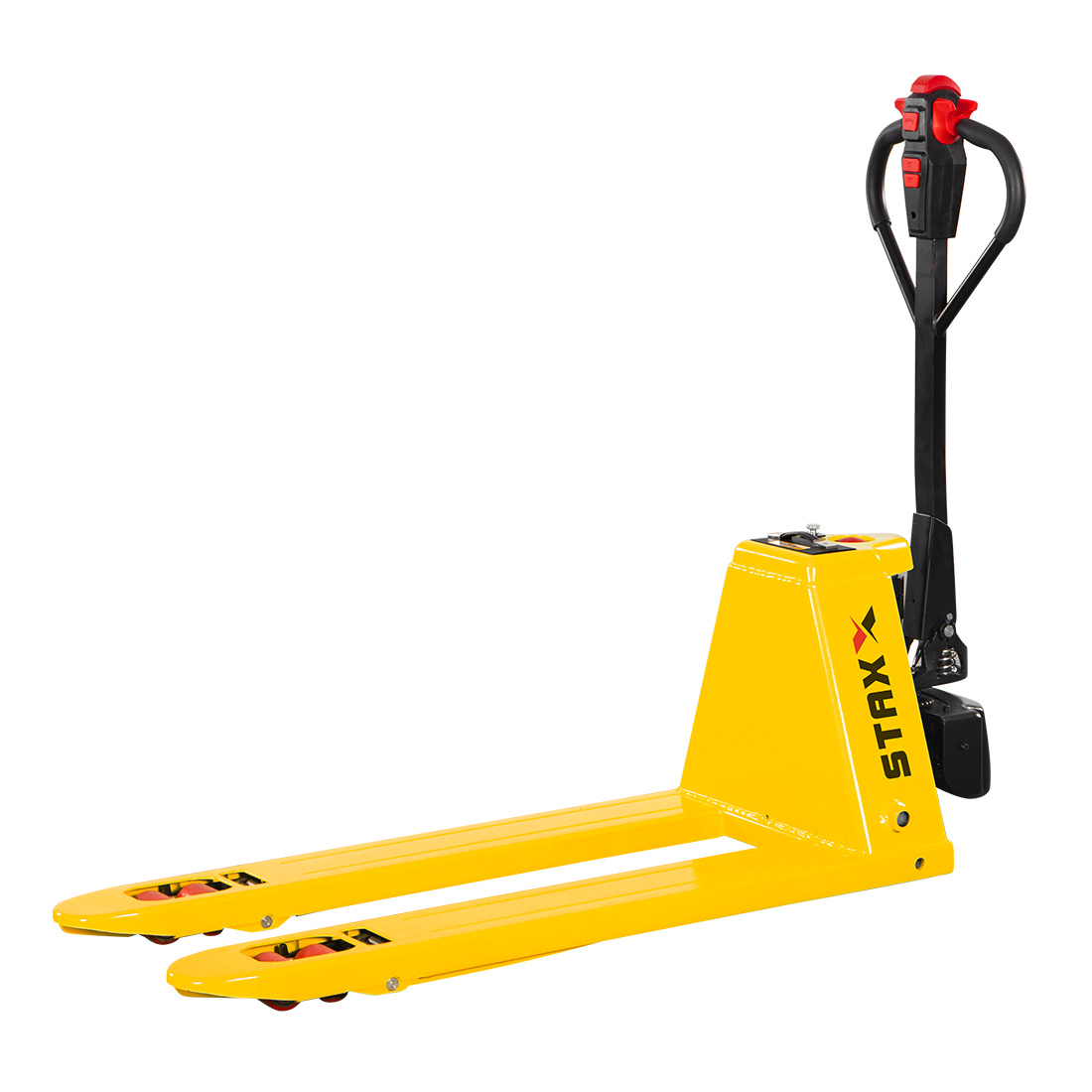

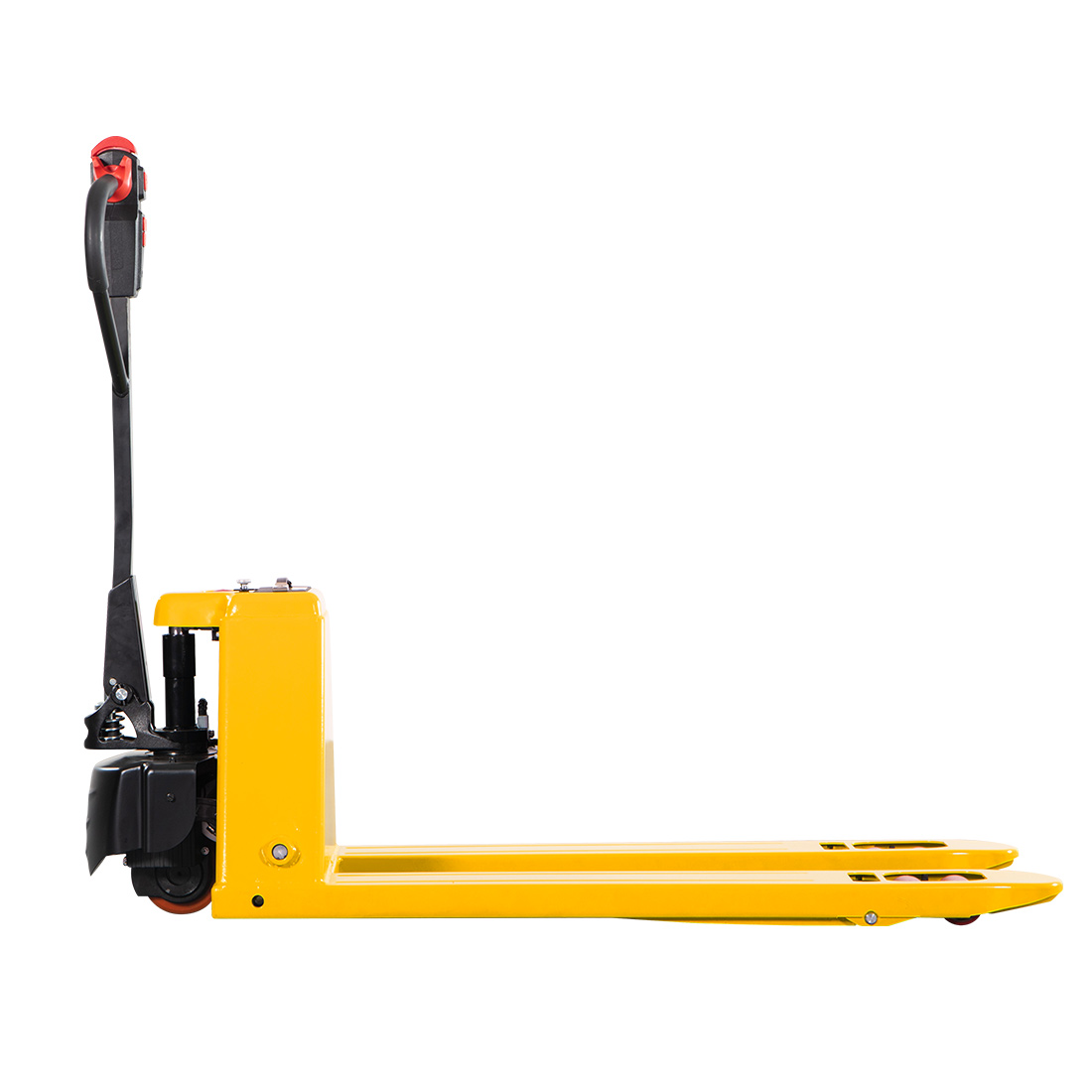

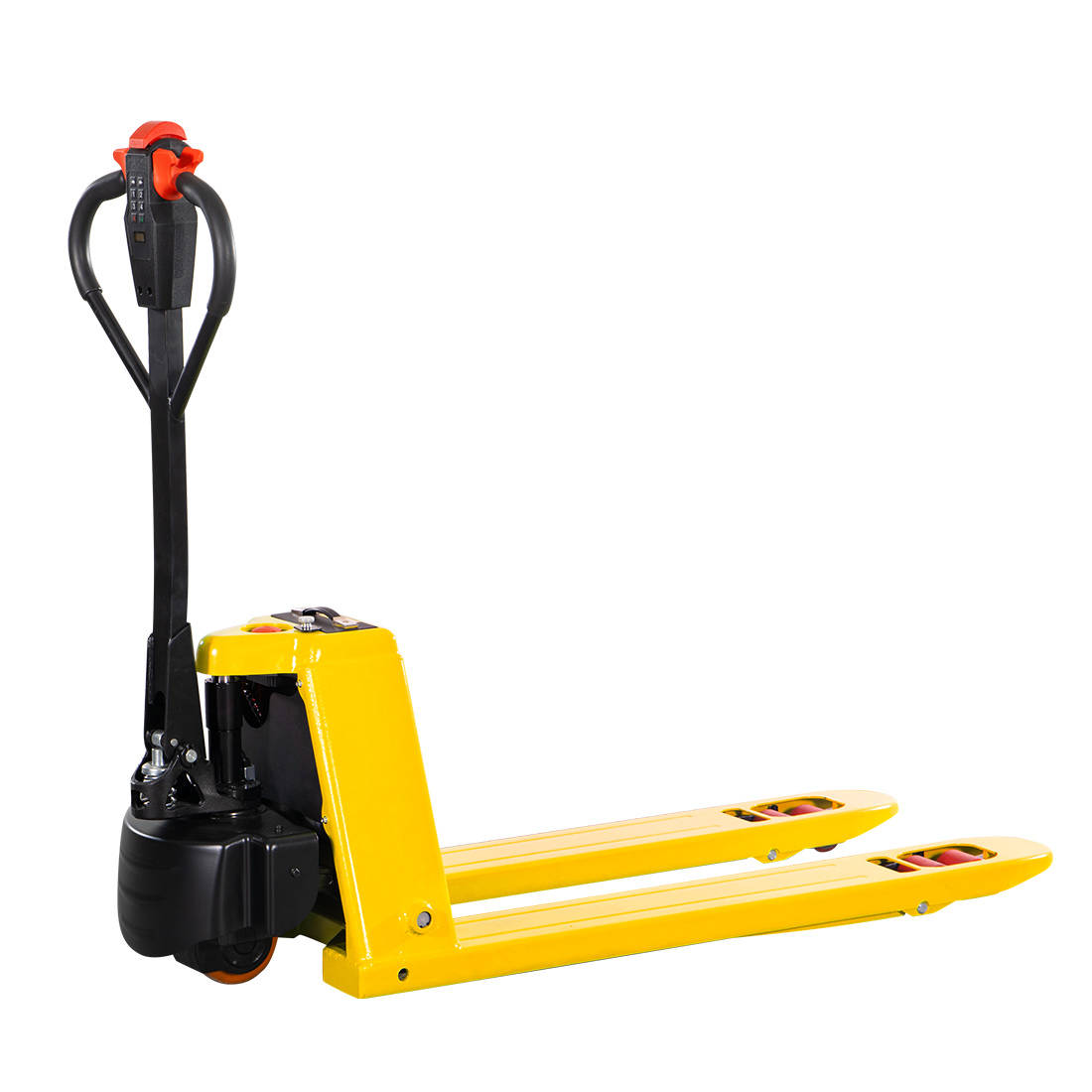

Staxx motorized pallet jack
SEMI ELECTRIC lithium PALLET TRUCK
Staxx semi electric pallet jack and lithium electric pallet trucks with a compact body, applicable to any tight place where hand pallet trucks are used.
Our semi electric pallet jack is easy maintenance, most parts maintenance is similar to a hand pallet truck.
◆ Five years warranty on chassis
◆ 6 seconds needed to remove the battery
◆ Gradeability with 1300kg load: 5 %
◆ lithium pallet jack with brake, the vehicle can stop anywhere, any time, regardless of ◆ slope, truck tail lift, or platform.

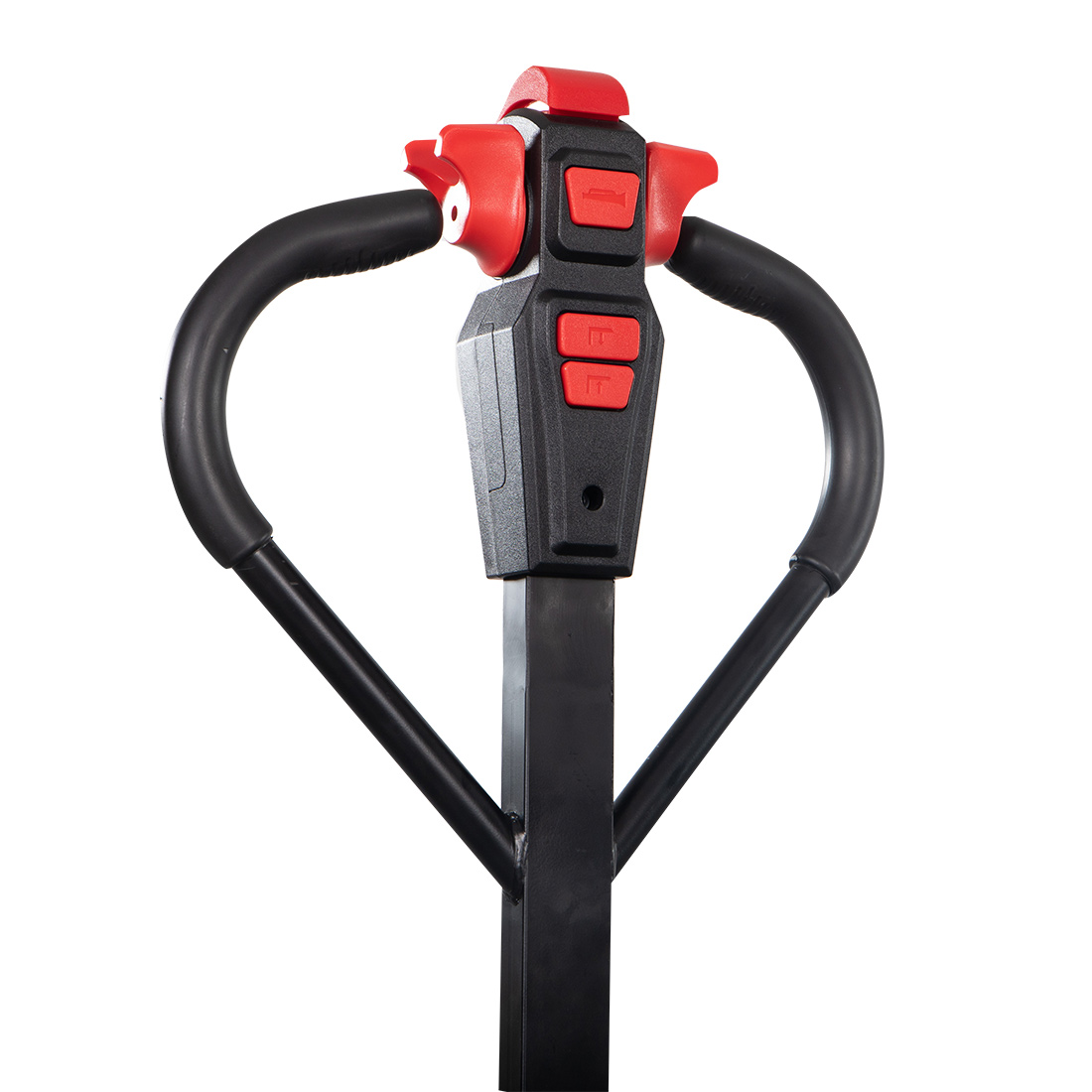

◆ Up-Right driving
◆ Quick lifting pump as an option
Traveling speed
- lithium semi electric pallet jack UNLADEN 5Km/h (3.1mph)
+ LADEN 4Km/h Full Electric (2.5mph) 3.5Km/h Semi-Electric (2.2mph)
Semi-Electric
In up-right drive mode, vehicle will move when handle is operated at any position. Please avoid misoperation.
Brake release mode is only for emergencies, not allowed for vehicle with normal conditions.
| MODEL | PPT18H | PPT18HQ | EPT15H | EPT18H | PPT40H | PPT40HQ | EPT33H | EPT40H | ||||
| CHARACTERISTICS | ||||||||||||
| 1.1 | Capacity | kg | 1800 | 1800 | 1500 | 1800 | lb | 4000 | 4000 | 3300 | 4000 | |
| 1.2 | Load center | mm | 600 | 600 | 600 | 600 | in | 23.6 | 23.6 | 23.6 | 23.6 | |
| 1.3 | Standard overall fork width | mm | 550/685 | 550/685 | 550/685 | 550/685 | in | 21.6/27 | 21.6/27 | 21.6/27 | 21.6/27 | |
| 1.4 | Fork length | mm | 1150/1220 | 1150/1220 | 1150/1220 | 1150/1220 | in | 45/48 | 45/48 | 45/48 | 45/48 | |
| 1.5 | Overall length | mm | 1552/1622 | 1552/1622 | 1552/1622 | 1552/1622 | in | 61/63.8 | 61/63.8 | 61/63.8 | 61/63.8 | |
| 1.6 | Lowered height of fork | mm | 82±2 | 82±2 | 82±2 | 82±2 | in | 3.2±0.8 | 3.2±0.8 | 3.2±0.8 | 3.2±0.8 | |
| 1.7 | Max height of fork | mm | 197 | 197 | 197 | 197 | in | 7.8 | 7.8 | 7.8 | 7.8 | |
| 1.8 | Overall height(with tiller) | mm | 1276 | 1276 | 1276 | 1276 | in | 50 | 50 | 50 | 50 | |
| 1.9 | Rear body width | mm | 550/685 | 550/685 | 550/685 | 550/685 | in | 21.6/27 | 21.6/27 | 21.6/27 | 21.6/27 | |
| 1.10 | Minimum turning radius | mm | 1353/1426 | 1353/1426 | 1353/1426 | 1353/1426 | in | 53.2/56 | 53.2/56 | 53.2/56 | 53.2/56 | |
| PERFORMANCE | ||||||||||||
| 2.1 | Max.Traveling speed | laden | km/h | 3.5 | 3.5 | 4 | 4 | mph | 2.2 | 2.2 | 2.5 | 2.5 |
| unladen | km/h | 5 | 5 | 5 | 5 | mph | 3.1 | 3.1 | 3.1 | 3.1 | ||
| 2.2 | Gradeability | laden | % | 5 | 5 | 6 | 6 | % | 5 | 5 | 6 | 6 |
| unladen | % | 20 | 20 | 20 | 20 | % | 20 | 20 | 20 | 20 | ||
| 2.3 | Traveling | kw | DC 0.75 Baishless | DC 0.75 Brushless | DC 0.75 Brushless | DC 0.85 Brushless | kw | DC 0.75 Brushless | DC 0.75 Brushless | DC 0.75 Brushless | DC 0.85 Brushless | |
| 2.4 | Lifting | kw | Hydraulic | QUICK LIFT | DC 0.5 | DC 0.5 | kw | Hydraulic | QUICK LIFT | DC 0.5 | DC 0.5 | |
| BATTERY | ||||||||||||
| 4.1 | Voltage | V | 48 | 48 | 48 | 48 | V | 48 | 48 | 48 | 48 | |
| 4.2 | Capacity/type | Ah | 10 Ah Lithium | 10 Ah Lithium | 10 Ah Lithium | 10 Ah Lithium | Ah | 10 Ah Lithium | 10 Ah Lithium | 10 Ah Lithium | 10 Ah Lithium | |
| BRAKE TYPE | ||||||||||||
| 5.1 | Travel brake | Regenerate | Regenerate | Regenerate | Regenerate | Regenerate | Regenerate | Regenerate | Regenerate | |||
| 5.2 | Brake | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic | |||
| CONTROLLER | ||||||||||||
| 6.1 | Controller | STAXXB1501 | STAXXB1501 | STAXXB1501 | STAXXB1501 | STAXXB1501 | STAXXB1501 | STAXXB1501 | STAXXB1501 | |||
